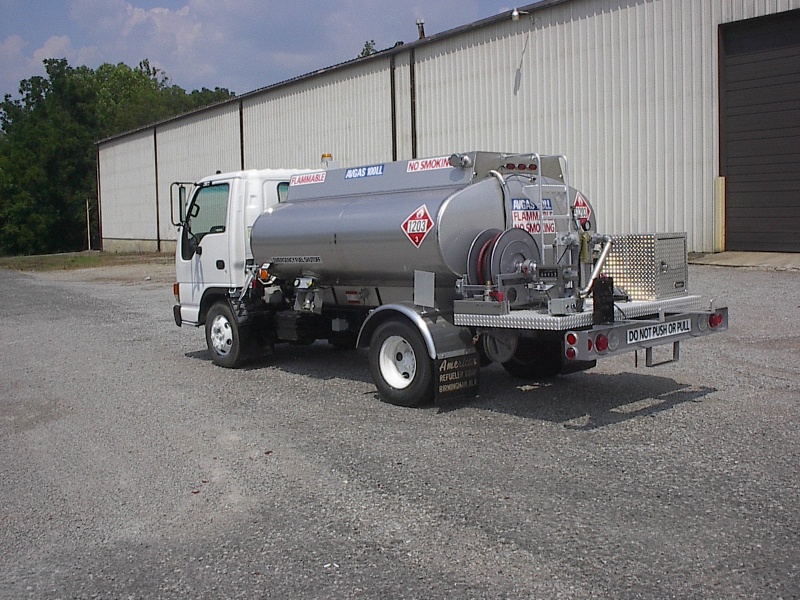

This is a NEW 1200 Gallon Stainless Steel AvGas Refueler mounted on 1998 Isuzu Chassis-Cab (Diesel/ Automatic)

Refueler Specifications as follows:

• 1200 Gallon Stainless Steel -One Compartment - 3% Outage NFPA 385 & 407
• DOT Construction fully baffled to prevent liquid surge - DOT 406 Construction
• Single Speed - Heavy duty PTO - hotshift
• Pump - 2" Gorman-Rupp #02F1-GR
• 2" Stainless Plumbing 150 PSI with By-Pass set at 60 PSI
• 1 ½" Velcon Filter - 50 GPM with Air Eliminator, manual drain, aquacon element and Differential Gauge
• Meter - M7 - with Large Numeral Counter and Reset, Tenths - Meter Calibrated, Set & Sealed
• Hose Reel Valve - 2" Wafer (Betts)
• Hose Reel - EPJ Electric Rewind Explosion Proof Motor - 50 Amp Circuit Breaker (Hannay) - Red Dot Vapor Proof Switch, Shut-off valve Immediately upstream of hose reel.
• Hose - 1" x 50" M&M Coupling
• Two (2) Fire Extinguishers with Truck mounting brackets, 20lb. BC Dry Powder
• Rolled Fenders over wheels with mud-flaps
• Fueling Rate: 38 GPM
• One (1) 16" manhole w/ 10" Fill with DOT Venting (Betts)
• Drain Tubes from flashing area
• Non-skid on top walkway
• Ladder at rear of tank
• Tank Water draw-off system
• 3" Emergency Valve with operator F-614A with High level shut-down, Pre-check and Gauge
• All Control lines nylon tubing with compression fittings- Brass
• Emergency shut-down on Driver side front and Passenger side rear
• Operating Instructions with Schematic
• 1" OPW Nozzle - #295SA with Dust Cap
• Interlock on PTO, Bottom loading and Nozzle
• All Equipment mounted on rear deck
• Heavy duty Bumper
• Operating Decals Installed
• Static Reel with 50' Static Cable and 100 AMP Clamp
• Nozzle Holder on Deck -Low level shut-down to prevent pumping air
• Stainless Steel Finish - No Paint except mild steel parts

  Chassis-Cab Specification:
• 1998 Isuzu NPR Chassis-Cab
• Engine - Isuzu 4 cylinder, in-line 4-cycle, turbocharged, intercooler, swirl chamber diesel
• HP (Gross) - 135 HP @ 2800 RPM
• Front Axle - Reverse Elliot "I" beam rated at 5,360 lbs
• Rear Axle - full floating single speed with hypoid gearing rated at 11,020 lbs
• Wheels: 16 x 6 x 6 hole disc wheels, Painted White
• Brakes - Dual circuit vacuum assisted hydraulic service brakes with load sensing proportioning valve in rear brake circuit and a metering Valve between the master cylinder and 3-way joint on the front brake lines
• Fuel Tank: 32.1 gallon, rectangular steel fuel tank
• Cab Equipment - Tilt and telescoping steering column, tinted glass
• AM/ FM Radio
• Front Suspension - 6,000 lbs.
• Rear Suspension - 13,500 lbs.
• Transmission - 4 speed automatic with overdrive
• Wheels & Tires 225/70R19.5 - Front and Rear Tubeless
• Regular Cab - Standard White Oxford Color

  Warranty on tank against leaking is one (1) year. Also, One (1) year warranty on major components provided unit is used within limits of it's design.

  F.O.B. Birmingham, AL $49,680.00
